current location：Home>Products>Optics Mounts Series>Optics Mounts

GM302 top adjustment optics mount

    1. The hand wheel inside the optics mount

    2. Two dimensional tilt adjustment

    3. M6×0.25 fine thread screw adjustment

    4. Support of lens will be by three rigid PTFE

  • description
  • parameters

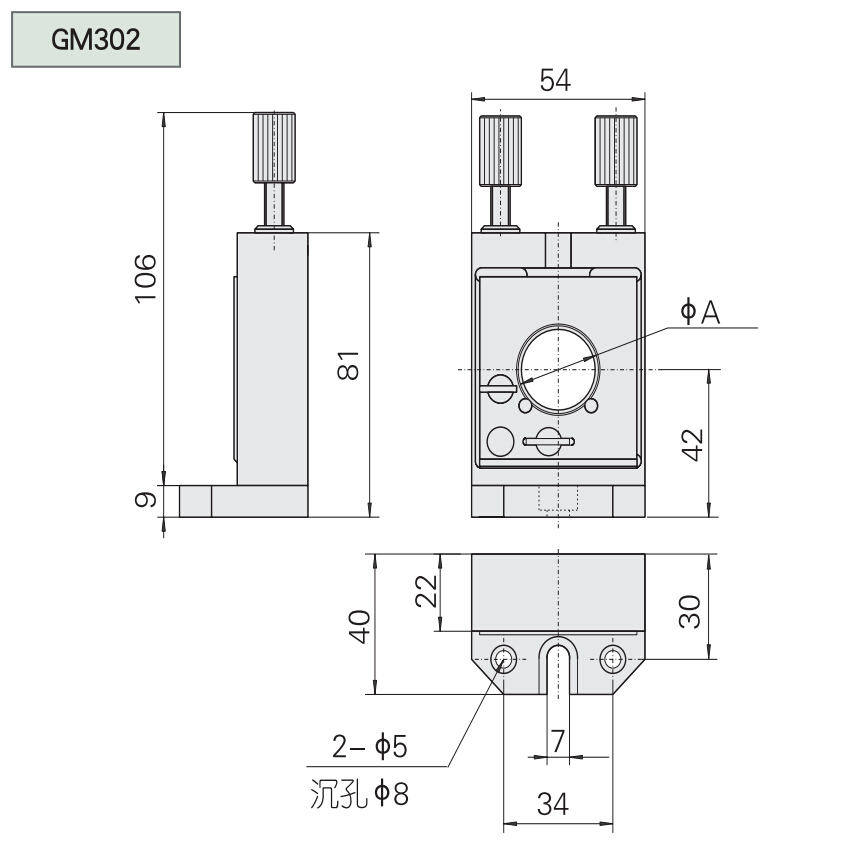

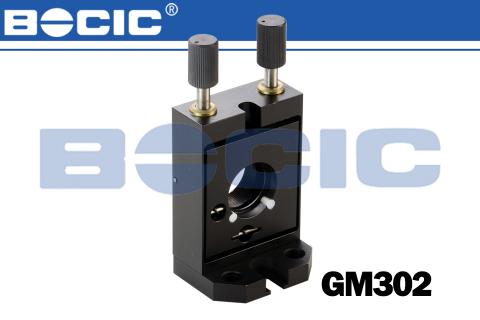

GM302 top adjustment optics mount




1. The hand wheel inside the optics mount

2. Two dimensional tilt adjustment

3. M6×0.25 fine thread screw adjustment

4. Support of lens will be by three rigid PTFE



Model

GM302

A  Applied diameter（mm）

Φ25/Φ25.4

Adjusting rang of tilt

θy

±3°

θz

±3°

Weight（kg）

0.3
