current location：Home>Products>Manual Positioners>Multi-axis Stages

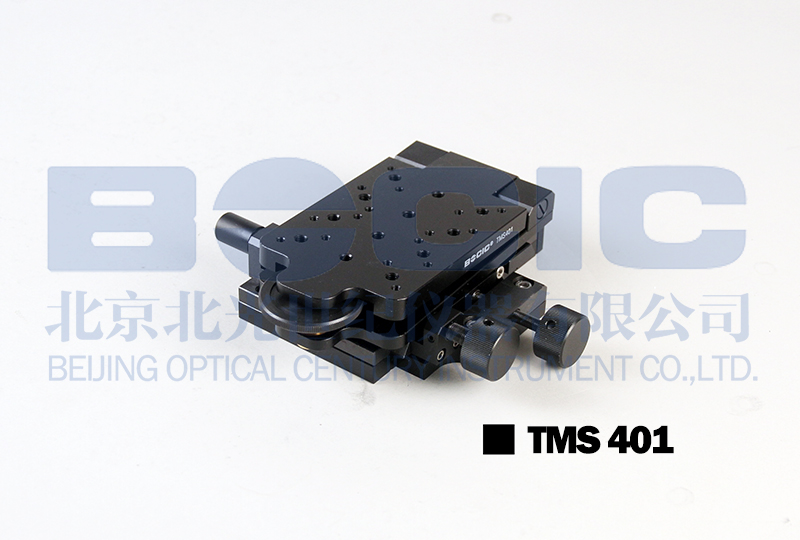

TMS401 multi-axis positioning stage

    1.The stages allow for 3-axis adjustments.

    2. Actuated with dovetail slide guides.

    3. Driven withfine teeth screw rods.

    4. Resetspringeliminates return backlash.

    5.TMS401 can be combined withVTS seriesstages to provide four-axisadjustment capability.

  • description
  • parameters

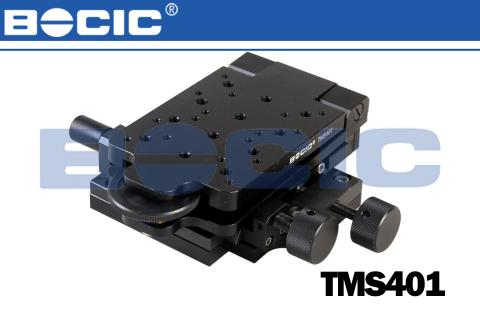

TMS401 multi-axis positioning stage




1.The stages allow for 3-axis adjustments.

2. Actuated with dovetail slide guides.

3. Driven withfine teeth screw rods.

4. Resetspringeliminates return backlash.

5.TMS401 can be combined withVTS seriesstages to provide four-axisadjustment capability.



Related Products：


        COMBINATED STAGES

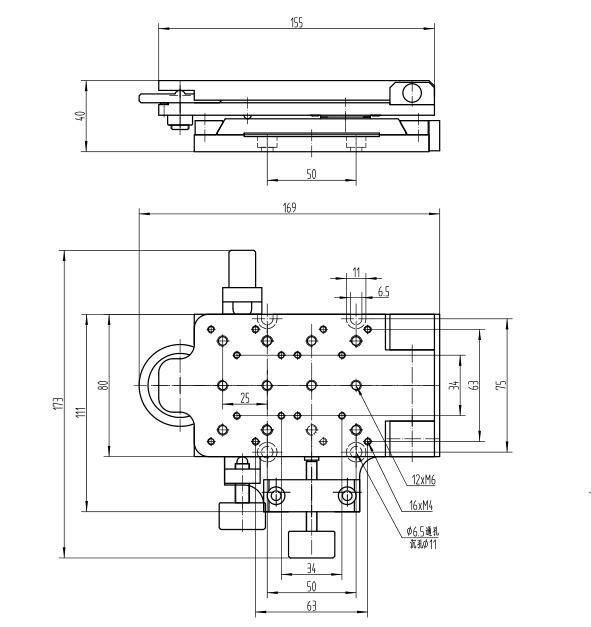

Model

TMS401

Travel（mm）

Ty：±10

Adjusting range of translation

θz：±2.5°

Adjusting range of pitch

θy：3°

Loading capacity

10

Weight（kg）

3
